Art. no: 4303220-CE
Designation: Induction heater BETEX SLF 303 230V incl. 2 yokes-CE
Designation: Induction heater BETEX SLF 303 230V incl. 2 yokes-CE
|
Dimensions bearing: |
|
|
Min. inside diameter Ø, vertical/horizontal |
45/110 mm |
|
Max. outside diameter Ø |
600 mm |
|
Max. width |
210 mm |
|
Max. weight |
150 kg |

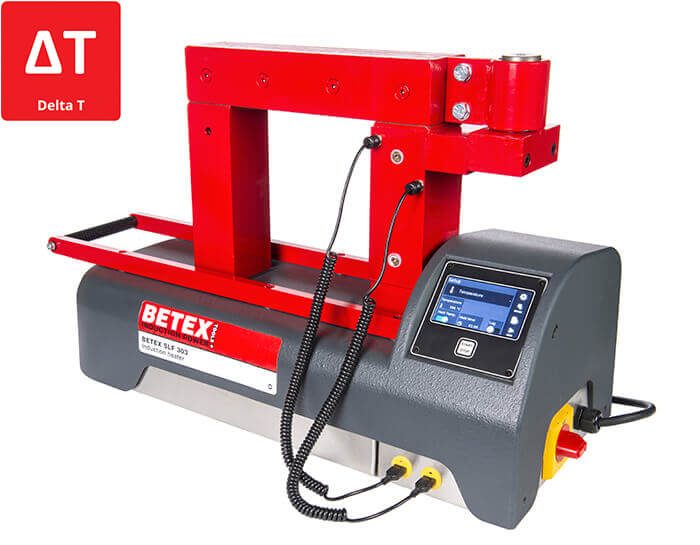

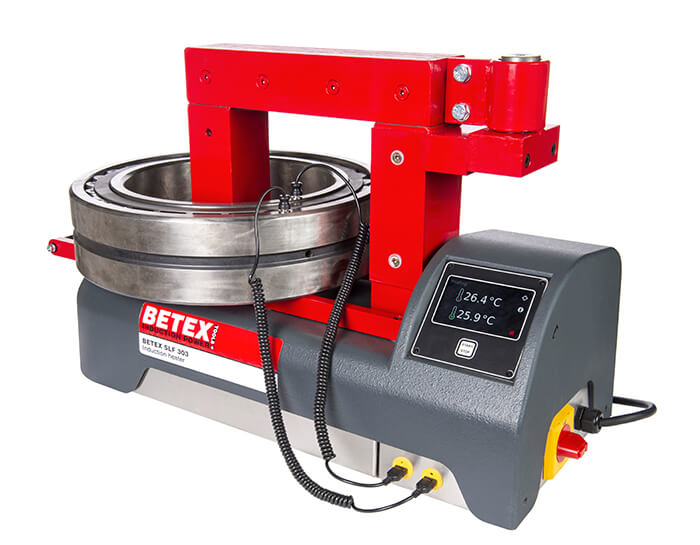

The SMART serie is used when more control over the heating process is needed. These models have a modern easy-to-use touchscreen and 2 temperature probes for dual temperature sensing (Delta T)
- Powerful bench top model, heating capacity till 150 kg
- With swing arm and 2 yokes included, 30, 70x80 mm
- Double temperature measurement Delta-T, incl 2 magnetic temperature probes
- Touchscreen with clear graph shows heating process
- Log function to store data or export to a USB-stick
- Create proof of work
- Tension free heating
- Temperature setting upto 240°C / 464°F
- Automatic demagnetization, better than 2A/cm
- Acoustic signal at the end of each heating cycle
- Temperature hold
- Time setting in minutes/seconds
- Heats according to preset temperature/time curve
- Log function to store data or export to a USB-stick
- Incl. service kit and CE-manual
- 3 years warranty on the electronic unit
This is a stock item
Accessories
Magnetic temperature sensors
Max. temperature
Length m
Yokes
Dimensions mm
Min. boring diam. mm
Swivel arm
Weight kg
Gloves
Max. temperature
250 °C / 482 °F
300 °C / 572 °F
Vaseline
Contents kg

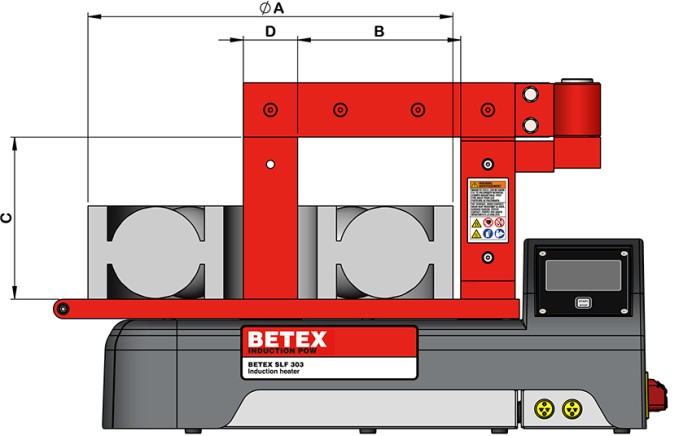

Dimensions
Field
Value
Product
4303220-CE - Induction heater BETEX SLF 303 230V incl. 2 yokes-CE
Max. weight bearing kg
150
Inside diameter horizontal mm
45/110
A max OD mm
600
B max. width mm
210
C Pole length mm
205
D Ø poles mm
70x80
Dimensions mm
788x315x456
Weight kg
52
