Product added to shopping cart
Selected product:
Art. no: 4302220-CE
Designation: Induction heater BETEX SLF 302 230V incl. 2 yokes-CE
Designation: Induction heater BETEX SLF 302 230V incl. 2 yokes-CE
|
Dimensions bearing: |
|
|
Min. inside diameter Ø, vertical/horizontal |
30/72 mm |
|
Max. outside diameter Ø |
500 mm |
|
Max. width |
180 mm |
|
Max. weight |
100 kg |

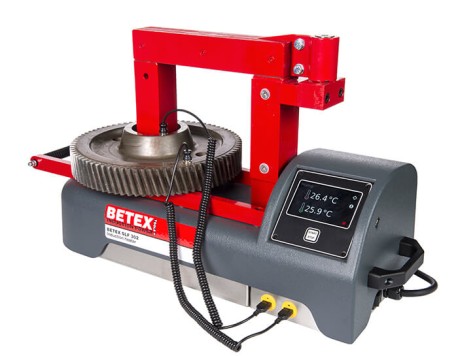

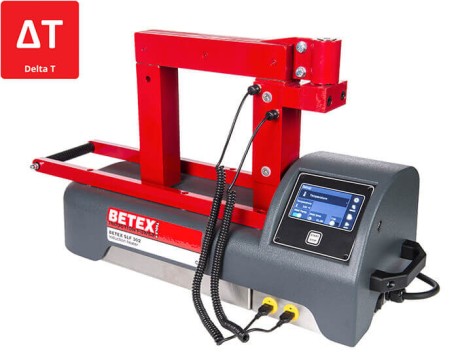

The SMART serie is used when more control over the heating process is needed. These have a modern easy-to-use touchscreen and 2 temperature probes for dual temperature sensing (Delta T)
- Bench top model, heating capacity till 100 kg
- With swing arm
- Double temperature measurement Delta-T, incl 2 magnetic temperature probes
- Touchscreen with clear graph shows heating process
- Log function to store data or export to a USB-stick
- Create proof of work
- Tension free heating
- Including 2 yokes: 20, 50 mm
- Temperature setting upto 240°C / 464°F
- Automatic demagnetization, better than 2A/cm
- Acoustic signal at the end of each heating cycle
- Temperature hold
- Time setting in minutes/seconds
- Heats according to preset temperature/time curve
- Incl. service kit and CE-manual
- 3 years warranty on the electronic unit
Note: the BETEX SLF 302 replaces the BETEX 24 RSDi TURBO
For current stock level please contact our sales department.
Accessories
Magnetic temperature sensors
Max. temperature
Length m
Yokes
Dimensions mm
Min. boring diam. mm

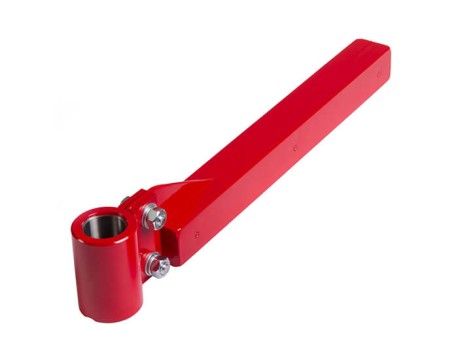

Swivel arm
Weight kg
Gloves
Max. temperature
250 °C / 482 °F
300 °C / 572 °F
Vaseline
Contents kg
Dimensions
Field
Value
Product
4302220-CE - Induction heater BETEX SLF 302 230V incl. 2 yokes-CE
Max. weight bearing kg
100
Inside diameter horizontal mm
30/72

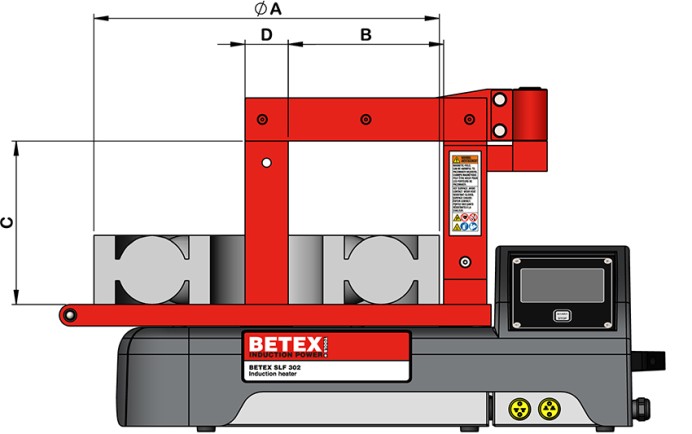

A max OD mm
500
B max. width mm
180
C Pole length mm
185
D Ø poles mm
50x50
Dimensions mm
702x256x392
Weight kg
31
