Selected product:
Designation: Induction heater BETEX SLF 306 450V incl. 1 yoke-CE
The BETEX SLF 306 is an advanced induction heater for fast and safe damage-free heating of bearings and transmission parts. With Delta-T and the two temperature sensors, these parts are monitored and heated to the correct temperature without stress. This ensures that these parts are prepared and assembled at the ideal temperature for technically correct installation. Includes the option to generate and share a detailed heating log. Simple operation via the touchscreen and wide applicability make the BETEX SLF series ideal for standard and specialist maintenance work.
Dimensions bearing:
Min. inside diameter Ø, vertical/horizontal: 60/150 mm
Max. outside diameter Ø: 1050 mm
Max. width: 400 mm
Max. weight: 600 kg
Key features of the SMART model:
- Heating capacity up to 600 kg
- Temperature setting upto 240°C / 464°F
- Dual temperature measurement with 2 temperature sensors (Delta-T) to measure the temperature of the inside and outside of a workpiece. This prevents material stress
- Pendulum function for maintaining the set temperature
- Automatic demagnetization better than 2A/cm
- Log function and export of work report to USB stick
- Touchscreen with a clear graph (TFT display)
- Acoustic signal at the end of each heating cycle
- Powerful mobile model with swing arm
- 2-year warranty on the electronic control unit
Heating methods:
- Temperature function: Controlled heating to a desired temperature
- Time function: Controlled heating based on a preset time duration
- Temperature or time function: Controlled heating to the desired temperature and for a set period. Once one of the two values has been reached, the heater switches off.
- Temperature and speed: Controlled heating to the desired temperature. The maximum temperature rise per unit of time can be entered so that the workpiece is heated according to a specific curve.
Scope of delivery:
- 1 BETEX SLF 306 induction heater
- 1 yoke: 90x90x60 mm
- 2 magnetic temperature sensors (up to 240°C)
- 1 pair of heat-resistant gloves (up to 250°C)
- Vaseline (100 g)
- Instruction manual
Accessories

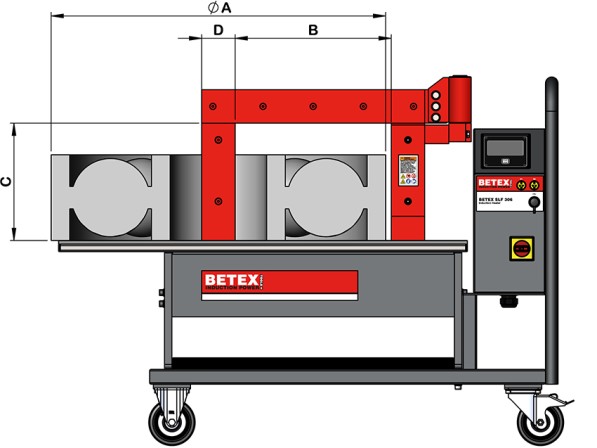

Dimensions
