Selected product:

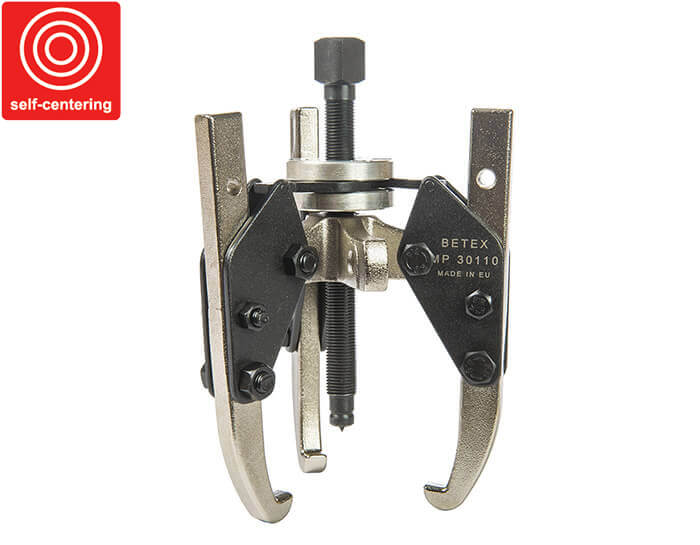

Art. no: MP30110
Designation: Mechanical 2/3-arm puller BETEX MP30110 self-centering
Request for information

The 2/3 arms of these pullers adjust themselves simultaneously and symmetrically, inwards, or outwards. Work efficient with perfect positioning of the arms. The arms cannot bend or deflect. The higher the pulling force, the tighter the grip of the arms.



These pullers are also available with extended arms for even larger capacity.



  • External puller
  • 2- or 3-arms
  • Self-centering
  • Available in 6 standard sizes
  • Available in 3 sizes with extended arms
For current stock, email our sales department.

Product specifications

Product
Max spread mm
Max shaft length mm
Weight kg
MP30110 - Mechanical 2/3-arm puller BETEX MP30110 self-centering
110
105
0.8
MP30175 - Mechanical 2/3-arm puller BETEX MP30175 self-centering
175
185
2
MP30240 - Mechanical 2/3-arm puller BETEX MP30240 self-centering
240
225
6.5
MP30350 - Mechanical 2/3-arm puller BETEX MP30350 self-centering
350
410
14.5
MP30480 - Mechanical 2/3-arm puller BETEX MP30480 self-centering
480
500
31.5
MP30680 - Mechanical 2/3-arm puller BETEX MP30680 self-centering
680
600
55.5
MP30405 - Mechanical 2/3-arm puller BETEX MP30405 self-centering with extended arms
405
490
16
MP30540 - Mechanical 2/3-arm puller BETEX MP30540 self-centering with extended arms
540
615
34.5
MP30720 - Mechanical 2/3-arm puller BETEX MP30720 self-centering with extended arms
720
640
61.5

Dimensions

Field
Value
Product
MP30110 - Mechanical 2/3-arm puller BETEX MP30110 self-centering
A mm
105
B mm
110
Weight kg
0.8
