Selected product:
Art. no: 610280
Designation: BETEX 1600 Digital laser/mechanical tachometer
Request for information

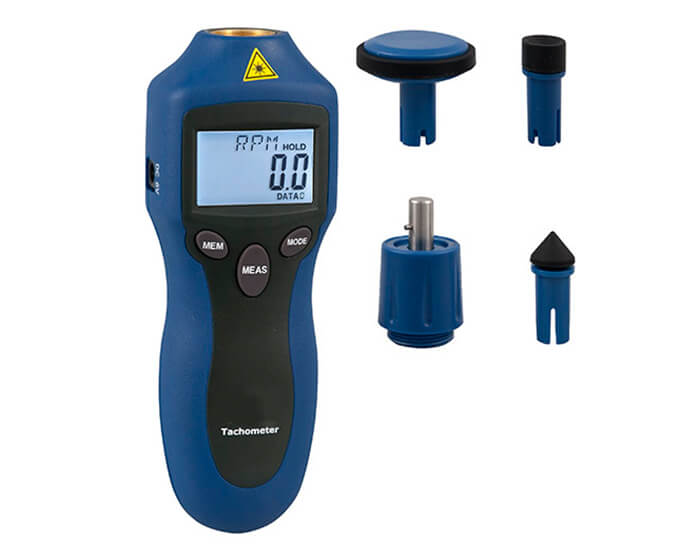

BETEX 1600 Tachometer

  • Speed measurement: rpm
  • Surface velocity: m/min
  • Number of rotations: counter
  • Frequency: m, in, ft, yd
  • Linear measurement: m, in, ft, yd
  • ABS plastic
  • Easy operation
  • With connection for network adapter 6
  • Digital lighted display
  • Adapters for mechanical measurements

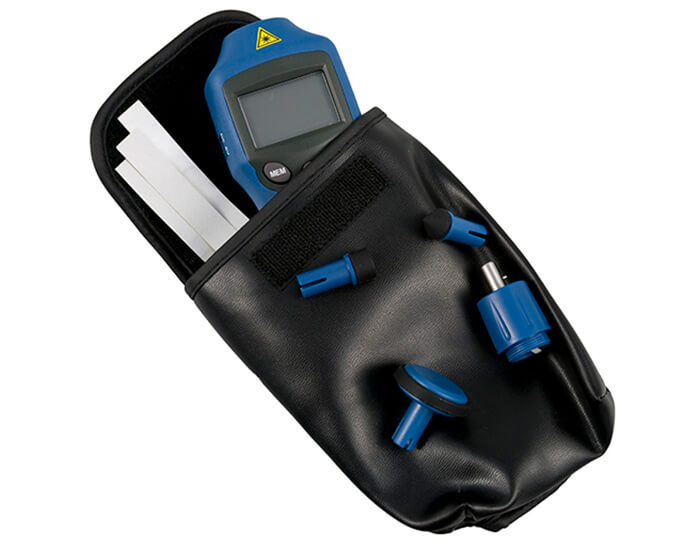

Scope of delivery:

  • BETEX 1600
  • Adapters
  • Adapter wheel
  • Measuring probe (outer cone)
  • Measuring hollow point (inside cone)
  • Belt bag
  • Strips of reflective tape 3pcs. (each 20 mm or 0.8 in)
  • Battery and user manual
For current stock, email our sales department.

Product specifications

Product
Request for information
Number
Measuring range laser-optical
Measuring range mechanical
Resolution
Accuracy
Measuring distance
Memory
Power
Casing material
Display
Dimensions LxWxH mm
Weight kg
Certification
BETEX 1600 Digital laser/mechanical tachometer
610280
2 - 99999 r.p.m.
2 - 20000 r.p.m.
0.1 r.p.m. in 2.0 - 9999.9 r.p.m. range
± 0.05% of r.p.m. measuring value; ± 1 digit
50 - 500 mm
10 readings
1 x 9V battery / external power source 6V
ABS plastic
LCD, 5 digits, 22 mm high
160 x 60 x 42
0.2
CE
