Art. no: 780346

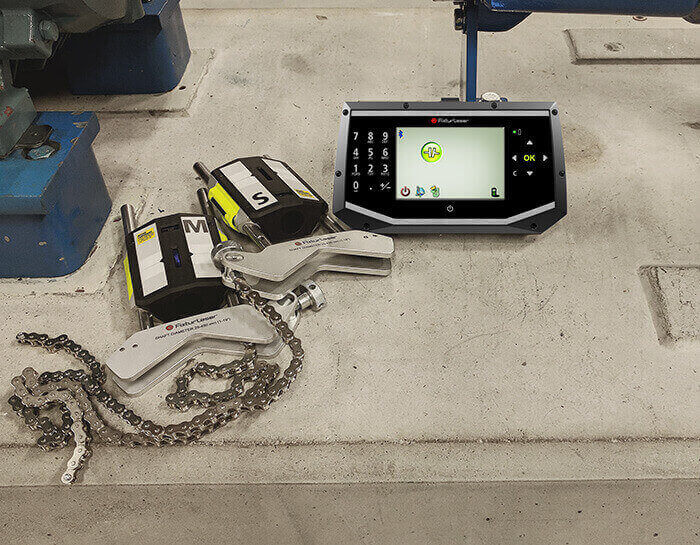

Designation: Fixturlaser ECO shaft alignment
Request for information

Fixturlaser ECO makes professional alignment equipment available to everyone because of its price / quality ratio.

The 20 mm detectors and the user-friendly user interface ensure that alignment can be carried out in any situation.



  • Integrated Bluetooth
  • Pre-mounted sensors
  • 4"colour display
  • VertiZontal Moves, innovative and time-saving features
  • Screen flip
  • 8 hours battery time, rechargeable, continous use
  • CCD sensors technology
  • Live values during adjustment
  • IP65 classified (resists harsh environments)
  • Slim wireless sensor units

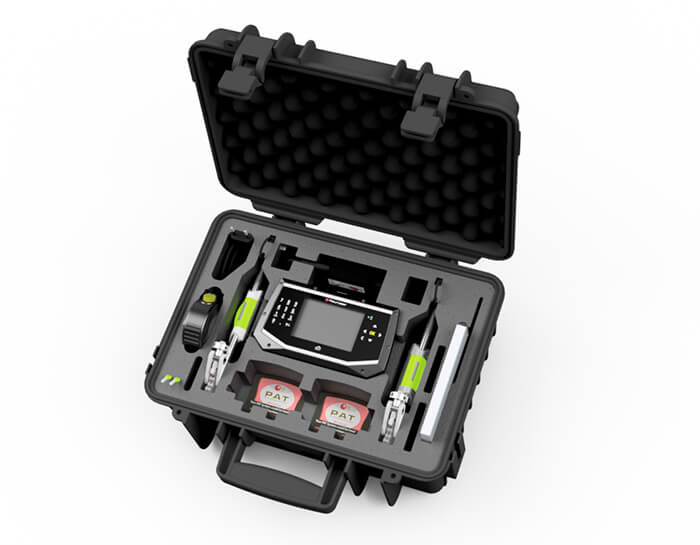

  • Case included
For current stock level please contact our sales department.

Product specifications

Product
Request for information
Number
Weight incl. all parts kg
Dimensions case LxWxH mm
Display unit
- Dimensions LxWxH mm
- Weight kg
- Display
- Operating time in hours
Sensor / units
- Weight kg
- Protection class
- Measuring distance
- Detector
- Detector reach / resolution
- Measurement accuracy
Brackets
- Shaft diameter mm
- Rods
Fixturlaser ECO shaft alignment
780346
4.8
415 x 325 x 180

181 x 106 x 34
0.36
4” (102 mm) / 84x56 mm
8

M6 0.2 kg / S6 0.188 kg
IP65
<3 m
Digital line sensor
20 mm / 1% ±1 number
0.3% ±7 μm

Ø25-175 mm / Ø25-450 mm + chain
4x 150 mm
