Selected product:
Art. no.: 8220302

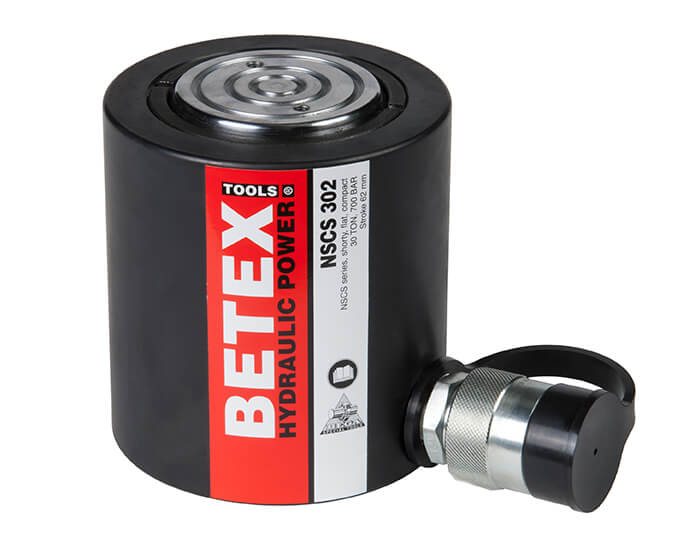

Designation: Cylinder BETEX NSCS 302
Designation: Cylinder BETEX NSCS 302
Art. no.: 8220302
Designation: Cylinder BETEX NSCS 302
Designation: Cylinder BETEX NSCS 302
|
Capacity |
: 10 - 100 ton |
|
Stroke |
: 38 - 62 mm |
|
Max working pressure |
: 700 bar |
- All NSCS hydraulic cylinders are single acting with spring return
- Pistons are hard chromed
- Rams inside roll-polished
- Exterior blasted with black nitride coating
- Female coupler and dust cap included with all models
TIP! Use in combination with our hand- and footpumps, accessories
Dimensions
Field
Value
Product
8220302 - Cylinder BETEX NSCS 302
A mm Installation height min
117
B mm installation height max
179
D mm
107
E Ø mm
75
F Ø mm
635
H mm
19
K mm
3
O mm
M5
P mm
8
U mm
39
Weight kg
6.8
