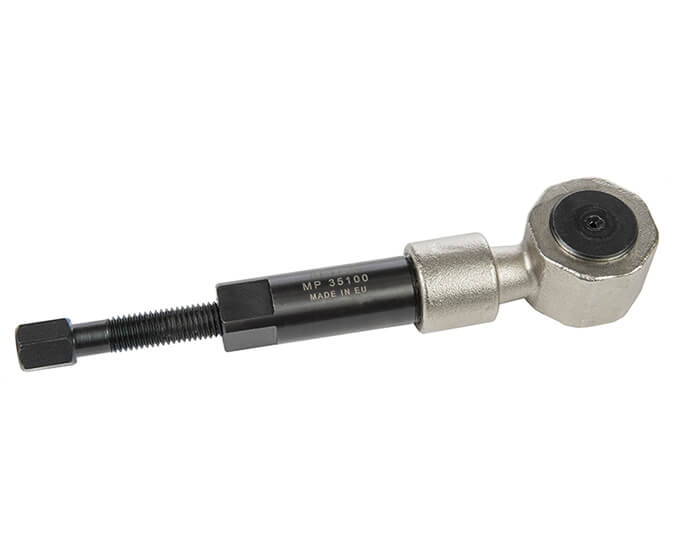

Designation: Hydraulic mini-press 8 ton BETEX MP35100
Designation: Hydraulic mini-press 8 ton BETEX MP35100

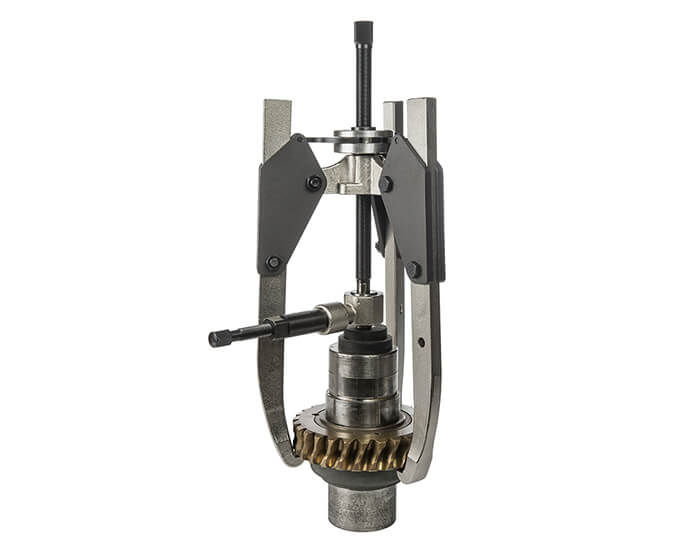

This auxiliary tool is used to increase pressure for stuck parts. The hydraulic mini press is placed between the shaft and the spindle. It administers a 5 mm stroke; max pressing capacity is 8 tons. The impact loosens the stuck workpiece. This prevents overloading and wear on the spindels.
- Combine with mechanical pullers
- Time-saving
- Prevents overload
- Protects spindles from bending
- Use for bearings, gears, sprockets, discs etc.
For current stock, email our sales department.
Dimensions
Field
Value
Product
MP35100 - Hydraulic mini-press 8 ton BETEX MP35100
A Ø mm
45
B Ø mm
34
C Ø mm
20
D mm
43
E mm
8
F mm
35
G mm
168
H mm
72
I Ø mm
36
J Ø mm
26.7
K (Bolt size M)
M14
L mm
H17
Weight kg
1.3
